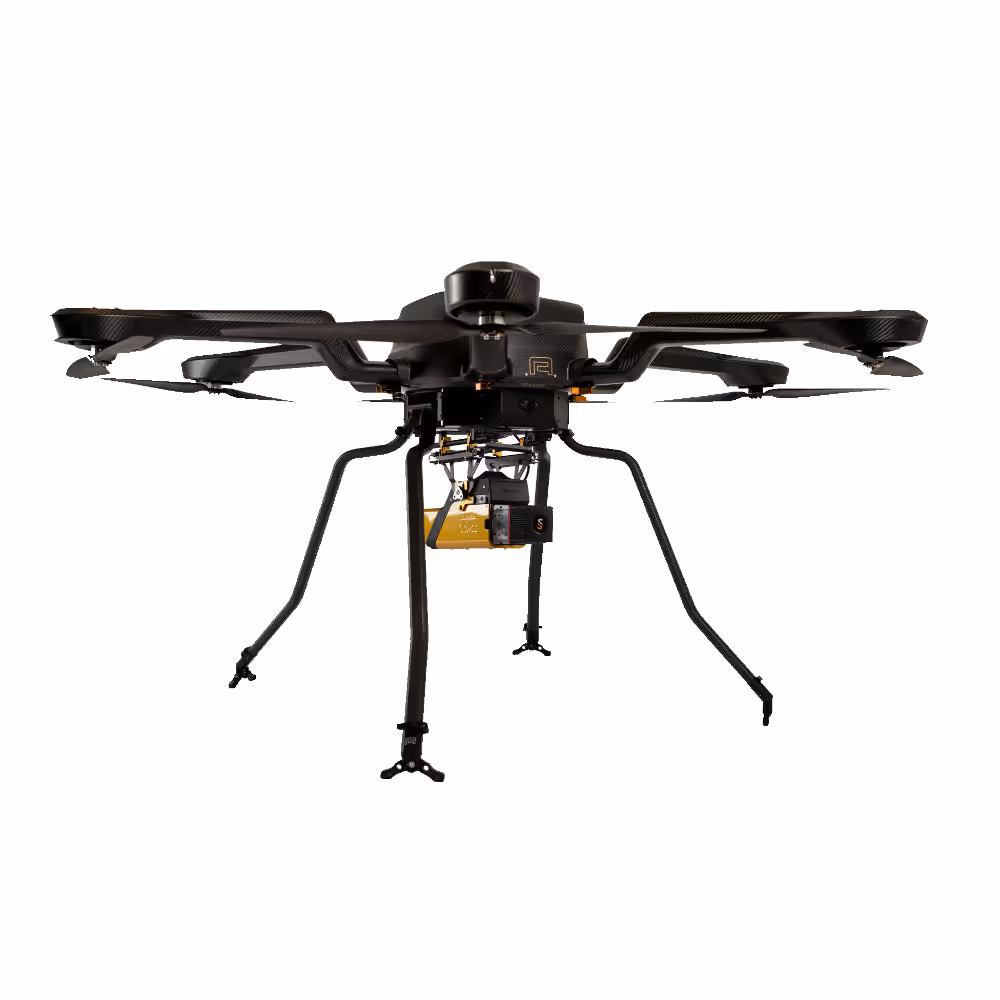

Acecore Noa Hybrid

Acecore Noa Hybrid

A$0.00
In stock
Out of stock
-
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
+
Add to Cart
Need a hand with this product? Our are team are happy to help - get in touch.
SKU
00001

Product info

After two and a half years of working on the best possible integration of Acecore's new hybrid gas-electric powertrain on the existing Noa UAV.

No More Flight-time Anxiety

Ever. This new Hybrid offers a maximum endurance of 175 or 265 minutes, depending on the fuel tank option. Charging anxiety is a thing of the past – though Noa Hybrid still features backup batteries to ensure a safe recovery.

Onboard Power

Noa Hybrid’s onboard gas-electric power supply was developed in-house through Acecore's passion for and experience with professional motorsport. The result is a highly integrated powertrain, driven by the liquid-cooled generator with a remote starter that supplies up to 4000W continuously to the brushless motors.

Redundancies

The Noa Hybrid offers additional redundancies to cover for any unexpected events – both its detachable fuel tanks contain independent backup batteries that can land the drone safely if the main power cuts out. Just as with the electric Noa, the Hybrid can lose one of its propellers/ motors and still land safely.

Specifications

 Maximum gross take-off weight 24.95kg
Maximum payload weight 6kg
Minimum standard empty weight 18.4kg
Maximum operating temperature +50°C
Minimum operating temperature -15°C
Maximum flight endurance 175 min *265 min achievable with fuel tank upgrade
Energy type Electrical and gas combustion hybrid
Number of motors 6
Motor type Direct Drive 3-phase BLDC outrunner
Operating voltage 42V - 52V

Features

  • 175-minute flight time
  • 6kg payload
  • Hybrid gas-electric power
  • AES256 encrypted radio link
  • Redundant fail-safe batteries
  • Dual GNSS GPS
