DJI RSC 2

Product info

Professional-level results are effortless with DJI RSC 2. This compact stabilizer for mirrorless and DSLR cameras features a foldable design and intuitive features, empowering filmmakers, one-man crews, and content creators everywhere.

Specifications

Peripheral
Accessory Connections
NATO port
M4 Mounting Hole
1/4”-20 Mounting Hole
Cold Shoe Mount
Video Transmission/ Follow Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Follow Focus Motor Port (USB-C)

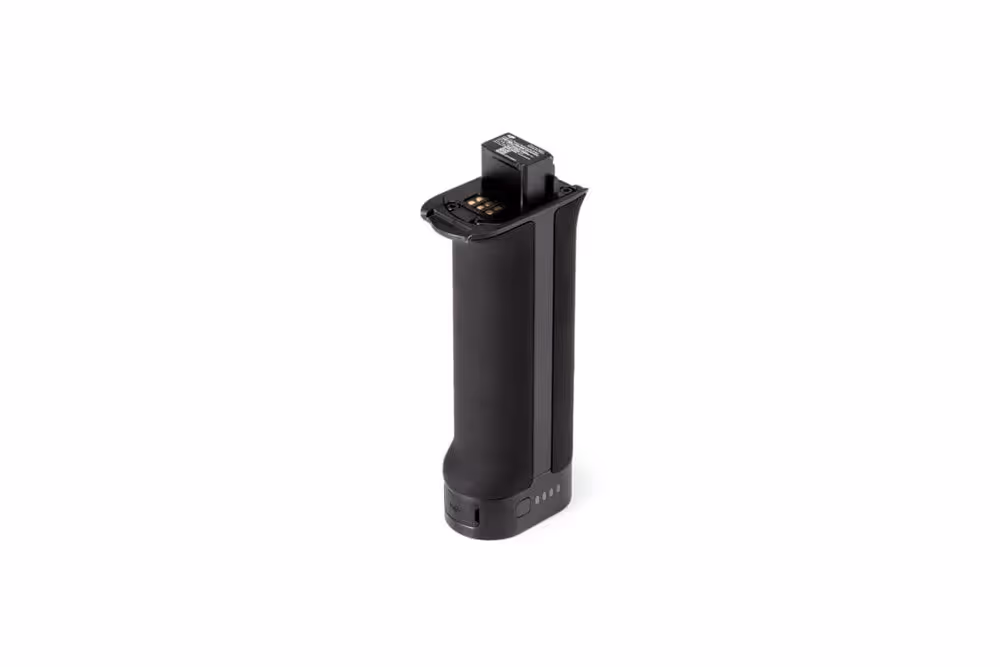

Battery
Model: RB2-3400mAh -7.2 V
Type: 18650 2S
Capacity: 3400mAh
Energy: 24.48 Wh
Max Battery Life: 14 hours
Charging time: Approx. 2 hours to fully charge with 18W fast charging (PD and QC 2.0 fast charging protocols are supported)
Charging temperature: 5° to 40° C (41° to 104° F)
Connections
Bluetooth 5.0; USB-C
Ronin App Requirements
iOS 11 or above;
Android 7.0 or above
Working Performance
Load Weight (Reference Value)
3.0 kg (Handheld)
Maximum Controlled Rotation Speed
Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Range
Pan axis: 360° continuous rotation
Roll axis: -240° to +95°
Tilt axis: -112° to +214°
Mechanical & Electrical Characteristics
Operating Frequency
2.4000-2.4835 GHz
Transmission Power
< 8 dBm
Operating Temperature
-20° to 45° C (-4° to 113° F)
Weight
Gimbal: Approx. 1216 g (including the battery and excluding Quick-Release Plate)
Quick-Release Plate (Upper/Lower) Approx. 102 g
Extended Grip/Tripod (Metal): Approx. 226 g
Extended Grip/Tripod (Plastic): Approx. 160 g
Gimbal Dimensions
Folded: 260×210×75 mm (including the handle)
Unfolded: 400×185×175 mm (including the handle and without the Extended Grip/Tripod)

Features

• Foldable design
• 1.2kg weight / 3kg tested payload
• Quick switch to vertical shooting
• 1" OLED screen
• Max 14 hour Fast-Charge batteries
• Titan Stabilisation Algorithm
