Gremsy - Pixy SM

Gremsy - Pixy SM

A$7,530.00
In stock
Out of stock
-
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
+
Add to Cart
Need a hand with this product? Our are team are happy to help - get in touch.
SKU
00001

Product info

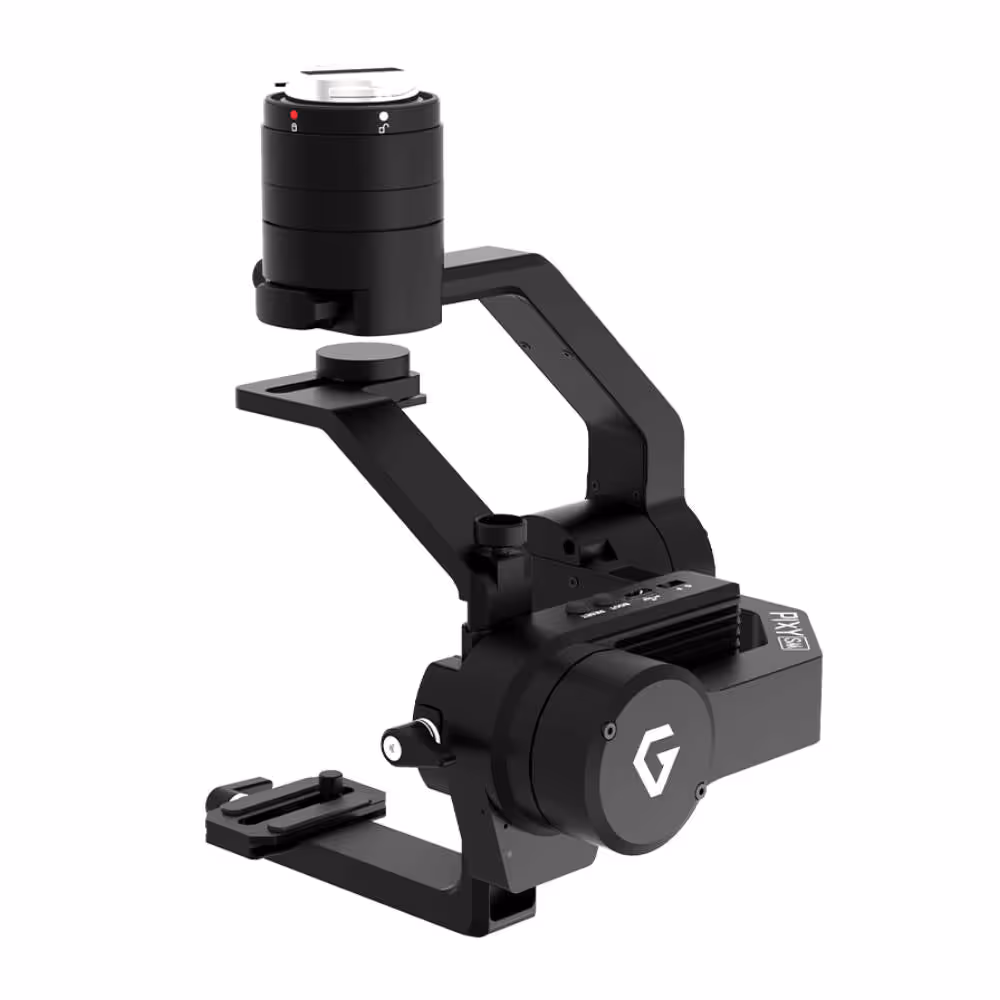

Pixy SM is specially designed to integrate the leading professional M300 RTK drone with the full-frame mirrorless Sony α7R IV camera, offering an unbeatable combination for precision aerial mapping missions.

Plug and play with M300 RTK

Utilising the built-in advanced processing module, integrating with M300 RTK is quick and straightforward within seconds. Just mount, connect, and you're ready to go.

Fully compatible with Sony a7R IV

Pixy SM is optimised to work perfectly with the 61-megapixel Sony α7R IV, ensuring that you can get high-resolution imagery for creating accurate maps.

  • Camera and gimbal control & settings on DJI Pilot app
  • Take photos & live streaming video from M300 RTK
  • Automatic tagging by GPS

Specifications

Lens compatibility

  • Lens 28mm - SEL28F20
  • Lens 35mm - SEL35F28Z
  • Lens 55mm - SEL55F18Z
Built-In Functions
  • 1. Operation Modes
    • Motor ON/OFF
    • Lock mode
    • Follow mode / Mapping mode
  • 2. Temperature Sensor
  • 3. Gremsy Specialised Gimbal Drive Motors with Encoders
  • 4. USB-C connection
  • 5. Gremsy Advanced 32-Bit high performance ARM microprocessor
  • 6. Gimbal control
  • 7. Sony A7R4 control
  • 8. DJI M300 connection

MECHANICAL & ELECTRICAL CHARACTERISTICS

Working Current
  • Static current: 400mA (@13.7V)
  • Dynamic current: 800mA (@13.7V)
  • Locked motor current: Max 4.0A (@13.7V)

Operating Temperature
  • 32° F ~ 122° F (0° C ~ 50° C)

Weight
  • 1.26 lbs (0.57 kg)

Gimbal Dimension
  • 147(W) x 157(D) x 190(H)

PERIPHERAL

Operating Power
  • 13.7V

Connections
  • DJI Skyport V2, USB 2.0, UART

PC Assistant Software Requirements
  • Windows 10 or above; macOS 12.0 or above

WORKING PERFORMANCE

GPS accuracy
  • 0.25m*

Angular Vibration Range
  • ± 0.02°

Maximum Controlled Rotation Speed
  • Pan axis: 100°/s
  • Tilt axis: 100°/s
  • Roll axis: 100°/s

Mechanical Endpoint Range
  • Pan axis control: +330° to -330°
  • Tilt axis control: +135° to -45°
  • Roll axis control: +25° to -90°

Controlled Rotation Range
  • Pan axis control: +160° to -160°
  • Tilt axis control: +135° to -45°
  • Roll axis control: ± 25°

*With flight condition: Lens: 55mm | Attitude: 150m | Max flight speed: 3m/s | Front Overlap: 80% | Side Overlap: 80%
